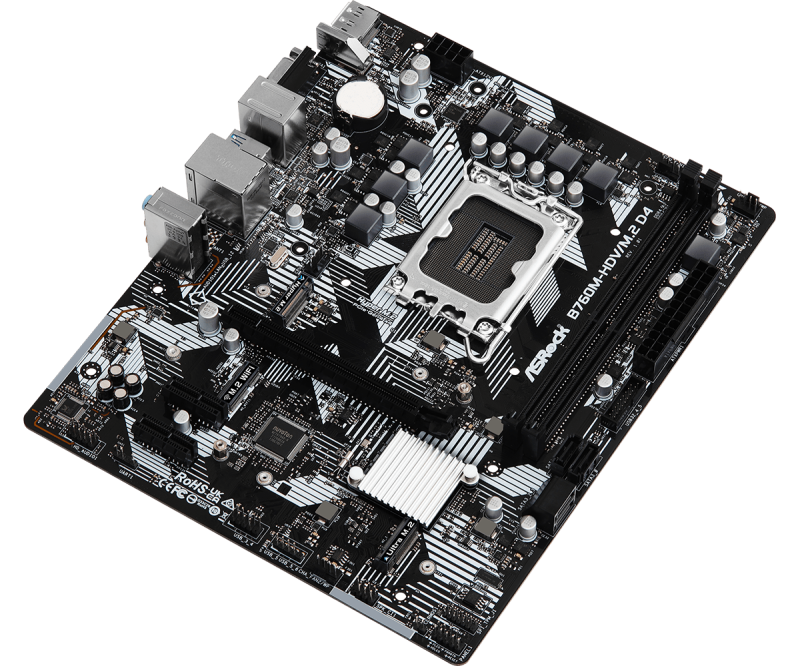

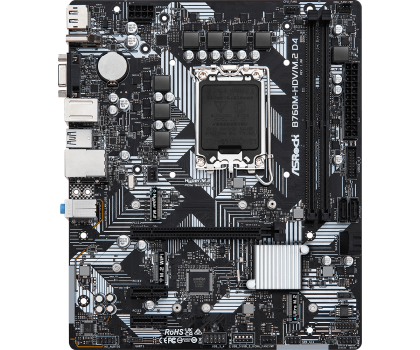

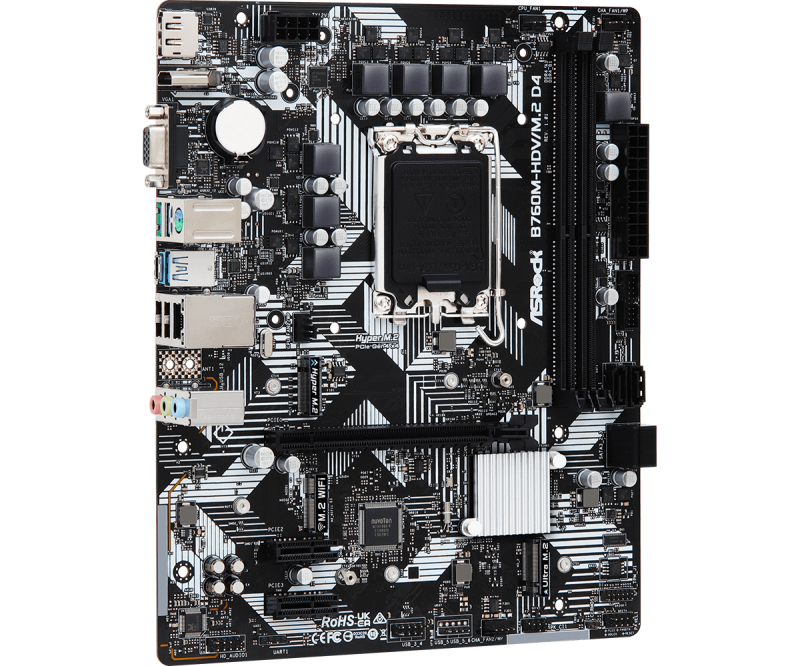

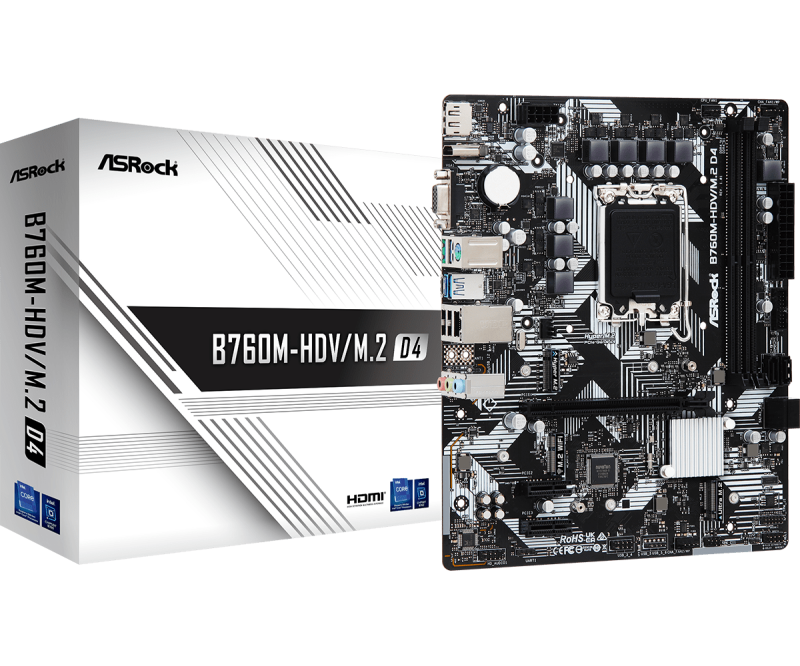

Motherboard ASRock B760M-HDV M.2, LGA1700, ATX
Brand:
ASROCK
-
CPU supports:Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
-
Memory Standard:DDR4
-
Maximum Memory Supported:64 GB
-
Number of Memory Slots:4
-
Frequency Memory:5333(OC) MHz
-
Support Dualchannel:Yes
-
Integrated Audio:Nahimic Audio
-
Integrated LAN:Realtek RTL8111H chip (10/100/1000 Mbit)
-
PCI-E x16:2
-
Interface Serial ATA:4 x SATA3 6.0 Gb/s
-
Connectors:2 x SMA antenna connectors
-
USB Ports:2 x USB 2.0
-
Dimension:Micro ATX - 24.4 x 20.1 cm
-
PCI-E x1:1
-
M2 socket:1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4
-
Raid support:Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
-
CPU Socket:1700
-
Power Connector:1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
-
Chipset:Intel B760
