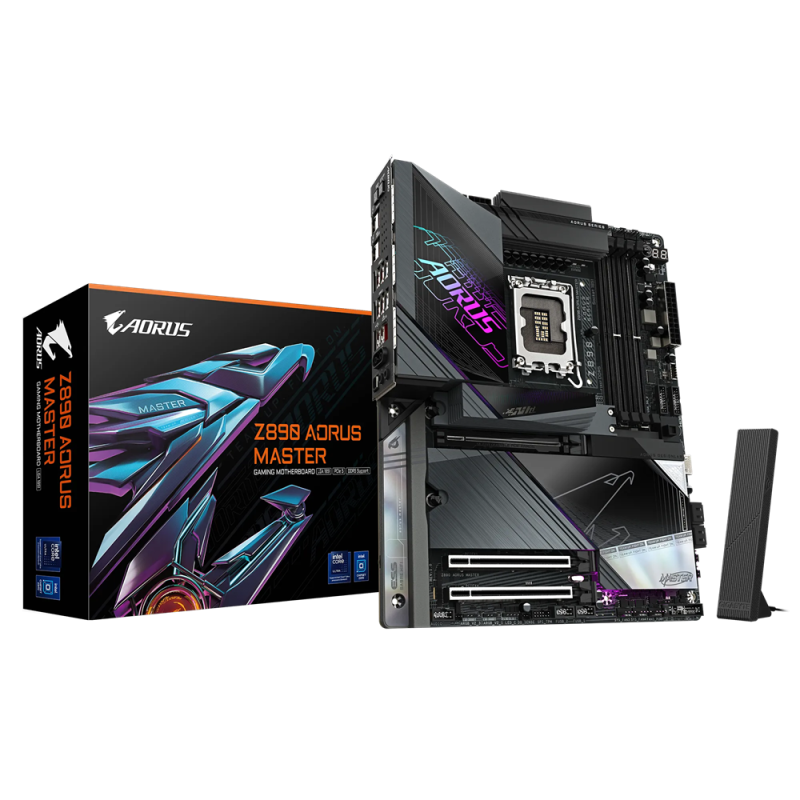

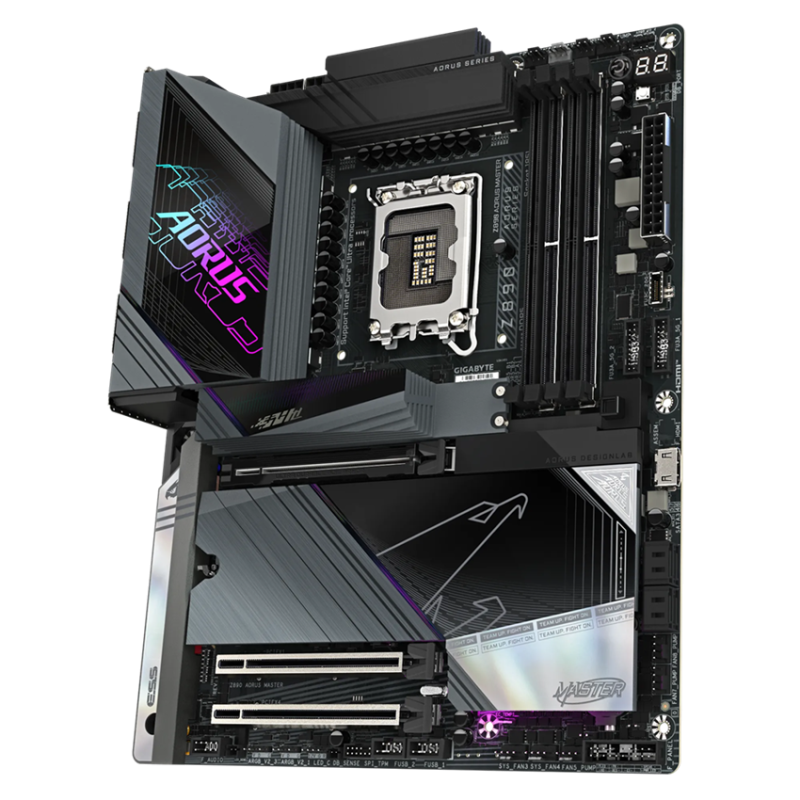

GB Z890 AORUS MASTER
Brand:
GIGABYTE
-
:Intel® Wi-Fi 7 BE200NGW;- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands;- BLUETOOTH 5.4;- Support for 11be 320MHz wireless standard;(Actual data rate may vary depending on environment and equipment.);* Wi-Fi 7 features re...
-
:Integrated Graphics Processor-Intel® HD Graphics support;- 2 x Intel® Thunderbolt™ 4 connectors (USB4® USB Type-C® ports), supporting DisplayPort and Thunderbolt™ video outputs;When a Thunderbolt™ monitor is installed, the maximum resolution supported...
-
:Realtek® ALC1220 CODEC;* The front panel line out jack supports DSD audio.;ESS ES9118 DAC chip;Support for DTS:X® Ultra;High Definition Audio;2/4/5.1-channel;* You can change the functionality of an audio jack using the audio software. To configure 5.1...
-
:CPU;- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16);* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.;* The PCIEX16...
-
:CPU;- 2 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel;*Support up to 40Gbps with Thunderbolt devices;*Support up to 20Gbps with USB4 devices;*Support up to 10Gbps with USB 3.2 devices;Chipset;- 6 x USB 3.2 Gen 2 Type-A ports (red) on th...
-
:LGA1851 socket: Support for Intel® Core™ Ultra Processors;L3 cache varies with CPU;* Please refer to "CPU Support List" for more information.
-
:CPU;- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU);- 1 x M.2 connector (Socket 3, M key, type 22110/2280...
-
:iTE® I/O Controller Chip;1 x 24-pin ATX main power connector;2 x 8-pin ATX 12V power connectors;1 x CPU fan header;1 x CPU fan/water cooling pump header4 x system fan headers;4 x system fan/water cooling pump headers;4 x addressable RGB Gen2 LED strip...
-
:1 x 256 Mbit flash;Use of licensed AMI UEFI BIOS;PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
