Brand:
ASUS
- :ASUS
- :Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax);Supports 2.4/5GHz frequency band
- :Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB la...
- :4 x DIMM slots, Max. 192GB, DDR5;7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory;Dual Channel Memory Architecture;Supports Intel® Extreme Memory Profile (XMP)...
- :1 x DisplayPort;2 x HDMITM ports
- :1 x Realtek 2.5Gb Ethernet
- :Intel® CoreTM Processors (14th & 13th & 12th Gen);1 x PCIe 4.0 x16 slot;Intel® B760 Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);1 x PCIe 4.0 x16 slot (supports x1 mode)

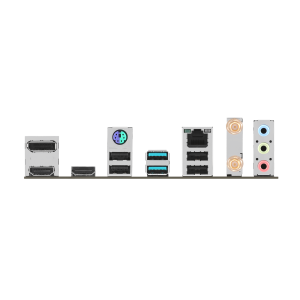

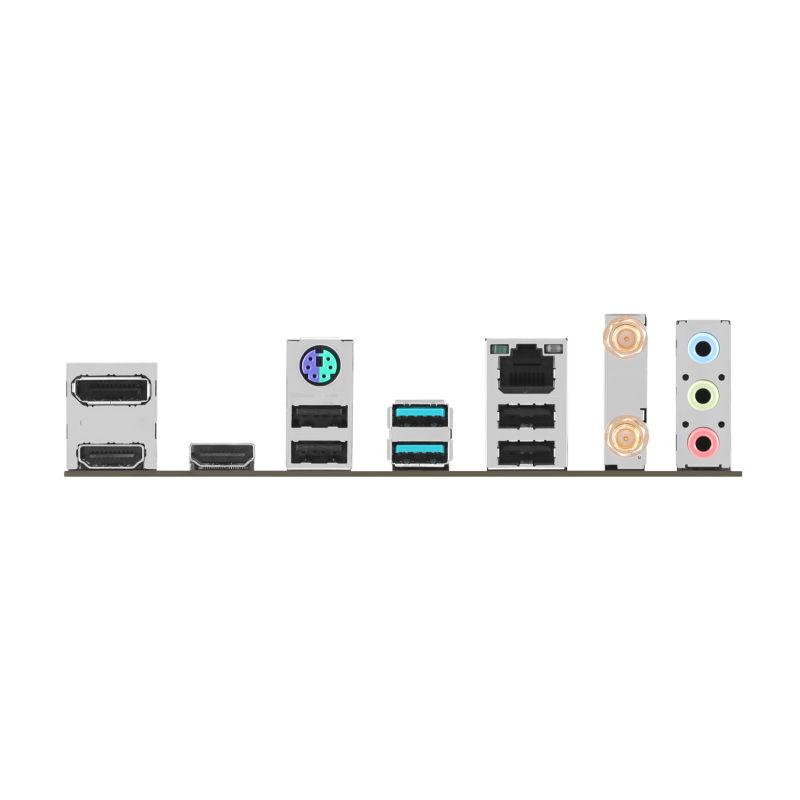

- :2 x USB 3.2 Gen 2 ports (2 x Type-A );4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;2 x HDMITM ports;1 x Wi-Fi Module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port
- :mATX Form Factor, 24.4 cm x 24.4 cm
- :Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- :Intel® B760 Chipset
- :Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports;Intel® CoreTM Processors (14th & 13th & 12th Gen);M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);Intel® B760 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4...
- :Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;2 x...
- :128 Mb Flash ROM, UEFI AMI BIOS
- :ASUS 5X PROTECTION III;- DIGI+ VRM;- LANGuard;- Overvoltage Protection;- SafeSlot Core+;- Stainless-Steel Back I/O;ASUS Q-Design;- Q-DIMM;- Q-LED Core;- Q-Slot;ASUS Thermal Solution;- M.2 heatsink;- VRM heatsink design;ASUS EZ DIY;- ProCool;Aura Sync;-...
- :Rear USB (Total 6 ports);2 x USB 3.2 Gen 2 ports (2 x Type-A );4 x USB 2.0 ports (4 x Type-A);Front USB (Total 10 ports);2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports;1 x USB 3.2 Gen 1 connector (supports USB Type-C®);2 x USB 2.0 h...
