Brand:
MSI
-
:Wi-Fi 6E Solution;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax;Supports Bluetooth® 5.3, FIPS, FISMA
-
:1x HDMI™;Support HDMI™ 2.1, maximum resolution of 4K 60Hz;1x DisplayPort;Support DisplayPort 1.4, maximum resolution of 4K 60Hz
-
:Realtek® ALC897, 7.1-Channel High Definition Audio
-
:2x PCI-E x16 slot;1x PCI-E x1 slot;PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 slot;• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Se...
-

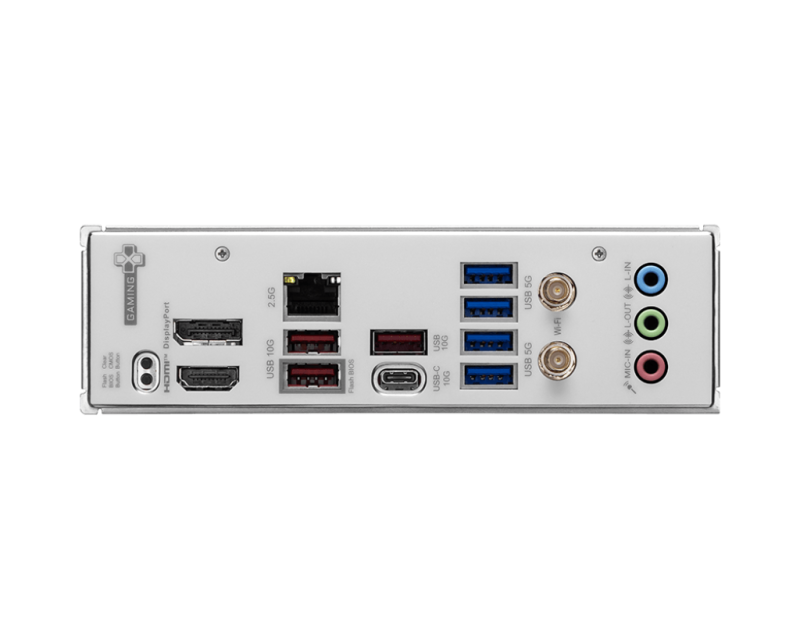

:Clear CMOS Button;DisplayPort 1.4;2.5G LAN;USB 10Gbps (Type-A);Wi-Fi / Bluetooth;HD Audio Connectors;Flash BIOS Button;HDMI™;USB 10Gbps (Type-A);USB 10Gbps (Type-C);USB 5Gbps (Type-A)
-
:Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
-
:2x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;4x SATA 6G;M2_1 slot;• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series proc...
-
:1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);4x System Fan;1x EZ Conn-header (JAF_1);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);1x Com Port (JCOM);1x Tuning Controller connect...
-
:Realtek® 8125D 2.5G LAN
-
:4x USB 2.0 (Front);4x USB 5Gbps Type A (Rear);2x USB 5Gbps Type A (Front);3x USB 10Gbps Type A (Rear);1x USB 10Gbps Type C (Rear);1x USB 10Gbps Type C (Front)
-
:MSI
-
:ATX, 243.84mmx304.8mm
-
:AMD B850
-
:4x DDR5 UDIMM, Maximum Memory Capacity 256GB;Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s;Ryzen™ 9000 Series Processors max. overclocking frequency:;• 1DPC 1R Max speed up to 8200+ MT/s;• 1DPC 2R Max speed up to 6400+ MT/s;• 2DP...
-
:LED FEATURE: 4x EZ Debug LED;1x EZ Memory Detection LED
