ASRock
:
Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
:
802.11be 2x2 Wi-Fi 7 Module;Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;Supports 2.4GHz/5GHz/6GHz* frequency band;Supports 160MHz channel bandwidth with 6GHz* frequency band;1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;Supports Blu...
:
5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec);WIMA Audio Capacitors (For Rear Outputs);ESS SABRE9219 DAC for Rear Panel Audio (130dB SNR);Individual PCB Layers for R/L Audio Channel;Direct Drive Technology on Front headphone por...
:
Dual Channel DDR5 Memory Technology;4 x DDR5 DIMM Slots;Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC);Max. capacity of system memory: 256GB;Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modul...
:
Integrated AMD RDNA™ graphics (Actual support may vary by CPU);- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz
:
5 Gigabit LAN 10/100/1000/2500/5000 Mb/s;Realtek RTL8126
:
CPU:;- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes;Chipset:;- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module;- Supports AMD CrossFire™
:

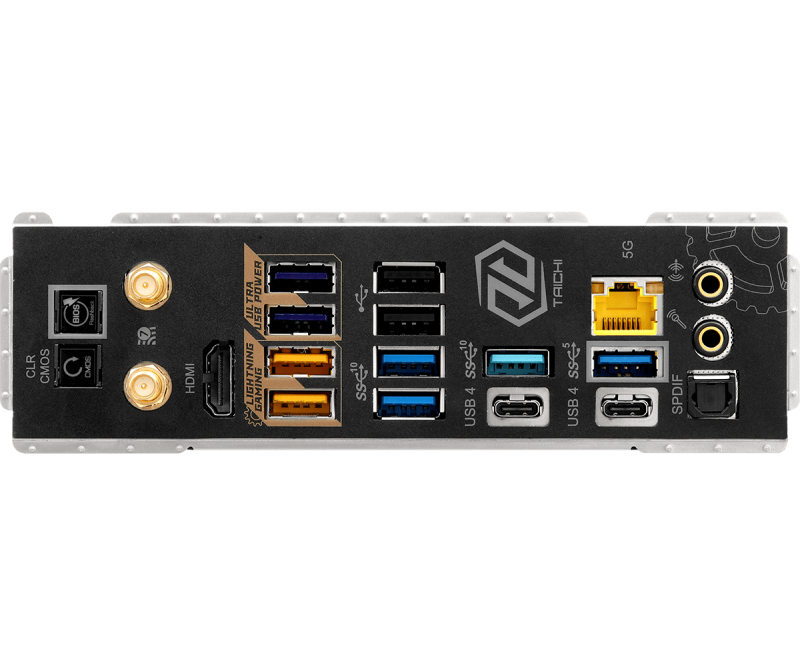

2 x Antenna Ports;1 x HDMI Port;1 x Optical SPDIF Out Port;2 x USB4 Type-C Ports (40 Gb/s);5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports.);3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power.);2 x USB 2.0 Por...
:
EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm;8 Layer PCB;2oz Copper PCB
:
Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors;Supports ASRock Hyper BCLK Engine
:
AMD X870E
:
CPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset:;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x...
:
3 x Thermistor Cable Headers;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector...
:
256Mb AMI UEFI Legal BIOS with GUI support
:
Superb Productivity;- PCIe Gen5 (Graphics, M.2);- Dual Channel DDR5;- USB4 Type-C Ports (40 Gb/s);Rock-Solid Durability;- Server-Grade Low-Loss PCB;- 24+2+1 Power Phase, 110A SPS for VCore+SOC with Enlarged Heatsink Armor;- Flexible Integrated I/O Shie...
:
CPU:;- 2 x USB4 Type-C (Rear);- 2 x USB 3.2 Gen2 Type-A (Rear);Chipset:;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 3 x USB 3.2 Gen2 Type-A (Rear);- 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front);- 6 x USB 2.0 (2 Rear, 4 Front)
