Microsoft Windows® 11 64-bit;Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Dragon 2.5G LAN Software;- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock I...
:
ASRock
:
- 802.11be 2x2 Wi-Fi 7 Module;- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be;- Supports 2.4GHz/5GHz/6GHz* frequency band;- Supports 320MHz channel bandwidth with 6GHz* frequency band;- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology;-...
:
- Dual Channel DDR5 Memory Technology;- 4 x DDR5 DIMM Slots;- Supports DDR5 non-ECC, un-buffered memory up to 9466MHz+(OC)*;- Supports Clocked Unbuffered DIMM (CUDIMM);- Max. capacity of system memory: 256GB;- Supports Intel® Extreme Memory Profile (XM...
:
- Intel® Xe LPG Graphics Architecture;- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz;- 2 x Intel® Thunderbolt™ 4, support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
:
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec);- Impedance Sensing on Rear Out port;- Individual PCB Layers for R/L Audio Channel;- Nahimic Audio
:
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s;- Dragon RTL8125BG;- Supports Dragon 2.5G LAN Software;- Smart Auto Adjust Bandwidth Control;- Visual User Friendly UI;- Visual Network Usage Statistics;- Optimized Default Setting for Game, Browser, and Streamin...
:
CPU;- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode;Chipset;- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode;- 1 x PCIe 4.0 x4 Slot (PCIE3), supports x4 mode;- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVio/CNV...
:

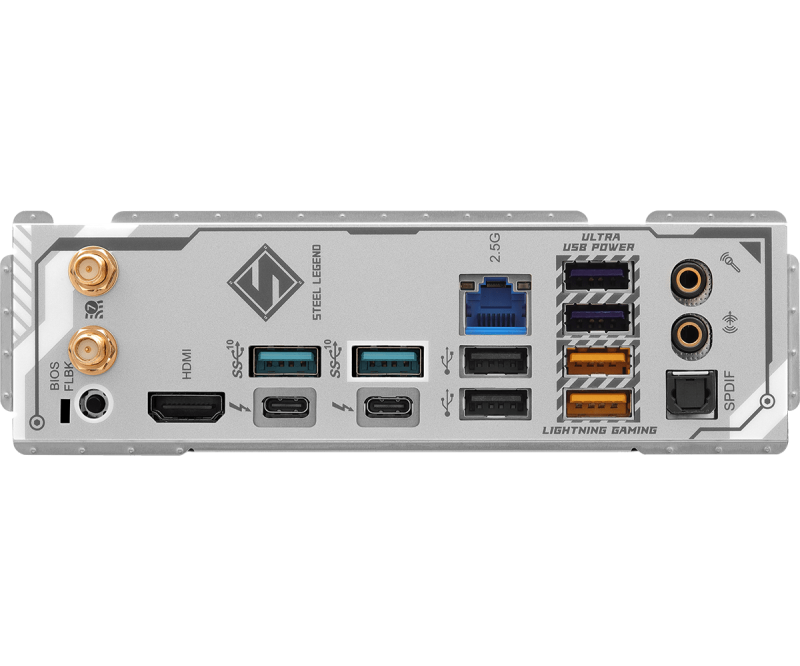

CPU;- 2 x Thunderbolt™ 4 Type-C (Rear);Chipset;- 1 x USB 3.2 Gen2x2 Type-C (Front);- 2 x USB 3.2 Gen2 Type-A (Rear);- 8 x USB 3.2 Gen1 (4 Rear, 4 Front);- 6 x USB 2.0 (2 Rear, 4 Front);- 2 x Antenna Ports;- 1 x HDMI Port;- 1 x Optical SPDIF Out Port;-...
:
- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm;- 2oz Copper PCB
:
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM);- Supports Intel® Hybrid Technology;- Supports Intel® Turbo Boost Max 3.0 Technology;- Supports Intel® Thermal Velocity Boost (TVB);- Supports Intel® Adaptive Boost Technology (ABT);-...
:
Intel® Z890
:
CPU;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;Chipset;- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb...
:
- 1 x Thermistor Cable Header;- 1 x SPI TPM Header;- 1 x Power LED and Speaker Header;- 1 x RGB LED Header;- 3 x Addressable LED Headers;- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control);- 5 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Co...
:
256Mb AMI UEFI Legal BIOS with GUI support
:
Superb Productivity;- PCIe Gen5 (Graphics, M.2);- Dual Channel DDR5- Thunderbolt™ 4 Type-C Ports (40 Gb/s);Rock-Solid Durability;- Server-Grade Low-Loss PCB;- 18+1+1+1+1 Power Phase, 80A SPS for VCore+GT+SA with Enlarged Heatsink Armor;- Memory OC Shie...
