ASUS TUF GAMIN B760-PLUS WF D4
Марка:
ASUS
-
Bluetooth:5.2
-
Manufacturer:ASUS
-
Wireless:Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax);Supports 2.4/5GHz frequency band;Bluetooth® v5.2
-
Memory Type:4 x DIMM, Max. 192GB, DDR4 5333(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory;Dual Channel Memory Archit...
-
Graphics:1 x DisplayPort;1 x HDMI® port
-
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Rear optical S/PDIF out port;- Premium audio capa...
-
LAN:1 x Realtek 2.5Gb Ethernet, TUF LANGuard
-
Expansion Slots:Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 5.0 x16 slot;Intel® B760 Chipset;1 x PCIe 3.0 x16 slot (supports x4 mode);2 x PCIe 3.0 x1 slots
-

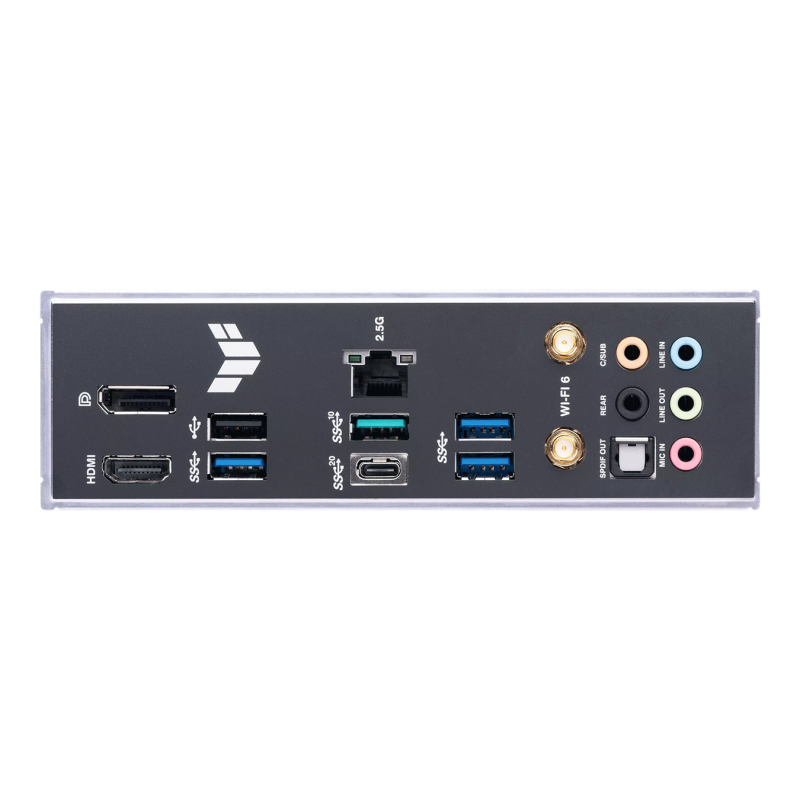

I/O:1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®);1 x USB 3.2 Gen 2 port (1 x Type-A);3 x USB 3.2 Gen 1 ports (3 x Type-A);1 x USB 2.0 port (1 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x Wi-Fi Module;1 x Realtek 2.5Gb Ethernet port;5 x Audio jacks;1 x Optica...
-
Form Factor:ATX Form Factor, 30.5 cm x 24.4 cm
-
CPU's supported:Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
-
Chipset:Intel® B760 Chipset
-
Storage:Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® Core™ Processors (14th & 13th & 12th Gen);M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode);Intel® B760 Chipset;M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe...
-
Connectors:Fan and Cooling related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;1 x 4-pin +12V Power connector;Storage re...
-
BIOS:128 Mb Flash ROM, UEFI AMI BIOS
-
Features:ASUS TUF PROTECTION;- DIGI+ VRM (- Digital power design with DrMOS);- ESD Guards;- TUF LANGuard;- Overvoltage Protection;- SafeSlot Core+;- Stainless-Steel Back I/O;ASUS Q-Design;- M.2 Q-Latch;- Q-DIMM;- Q-LED (CPU [red], DRAM [yellow], VGA [white], Bo...
-
USB:Rear USB (Total 6 ports);1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®);1 x USB 3.2 Gen 2 port (1 x Type-A);3 x USB 3.2 Gen 1 ports (3 x Type-A);1 x USB 2.0 port (1 x Type-A);Front USB (Total 7 ports);1 x USB 3.2 Gen 2 connector (supports USB Type-C®);1 x...
