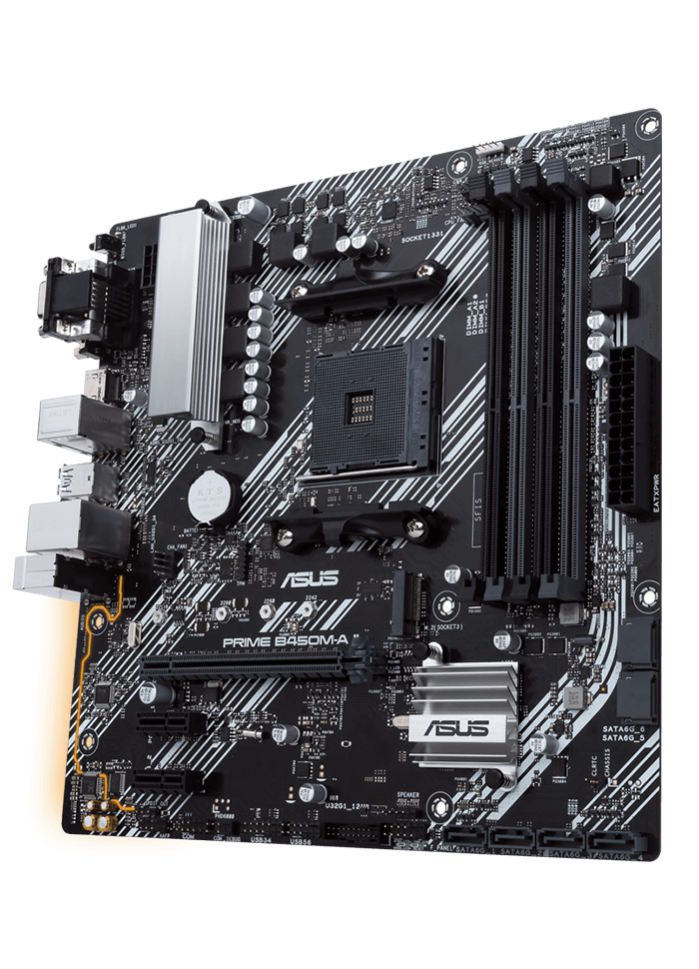

ASUS PRIME B450M-A II /AM4
Марка:
ASUS
-
Graphics:Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *; 1 x D-Sub; 1 x DVI-D; 1 x HDMI 2.0b
-
Audio:Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *; - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback Audio Feature : - LED-illuminated design; - Audio Shielding; - Dedicated audio PCB laye...
-
Expansion Slots:3rd/2nd/1st Gen AMD Ryzen™ Processors; 1 x PCIe 3.0 x16 (x16 mode); 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors; 1 x PCIe 3.0 x16 (x8 mode); AMD Athlon™ with Radeon™ Vega Graphics Processors; 1 x PCIe 3.0 x16 (x4 mode); AMD B450 ch...
-

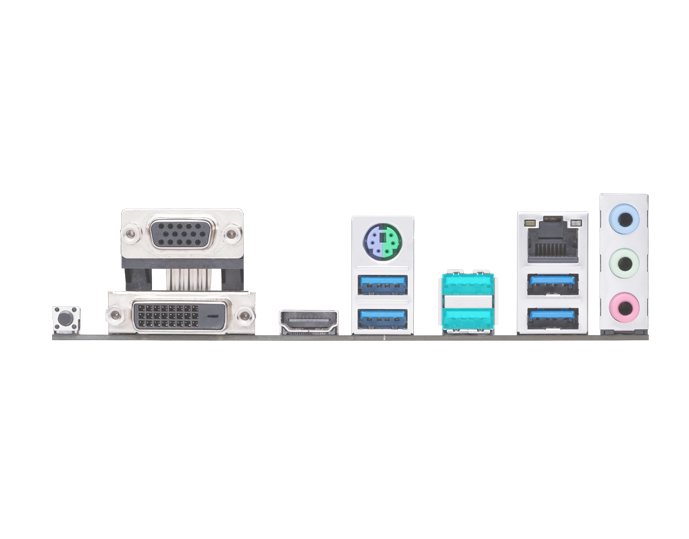

I/O:1 x PS/2 keyboard/mouse combo port(s); 1 x DVI-D; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A); 4 x USB 3.2 Gen 1 (blue) Type-A; 3 x Audio jack(s); 1 x BIOS FlashBack™ Button(s)
-
CPU's supported:AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
-
Storage:Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports; 3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : *1; 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode);...
-
Connectors:1 x CPU Fan connector(s) (1 x 4 -pin); 2 x Chassis Fan connector(s) (2 x 4 -pin); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x...
-
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
