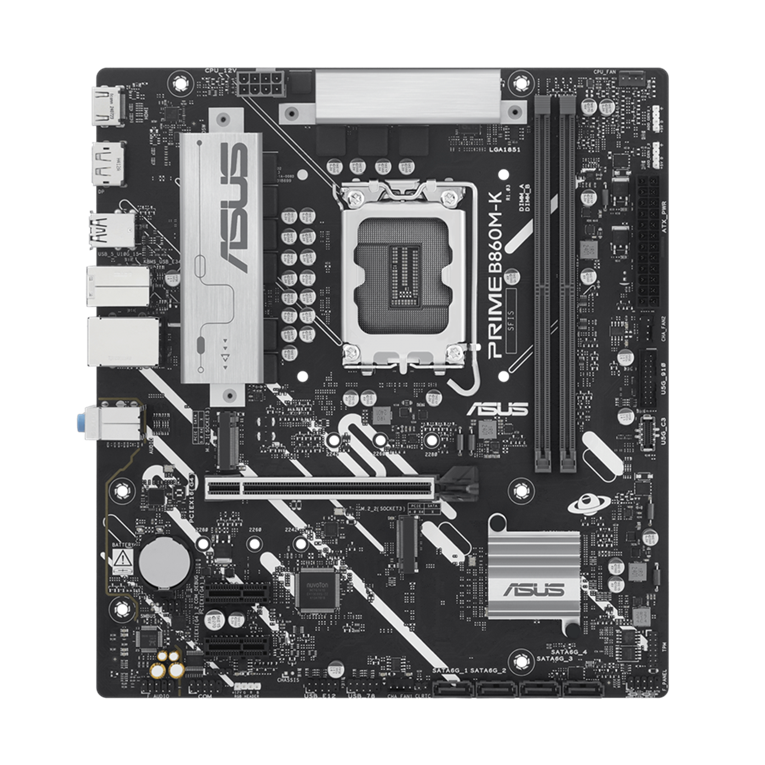

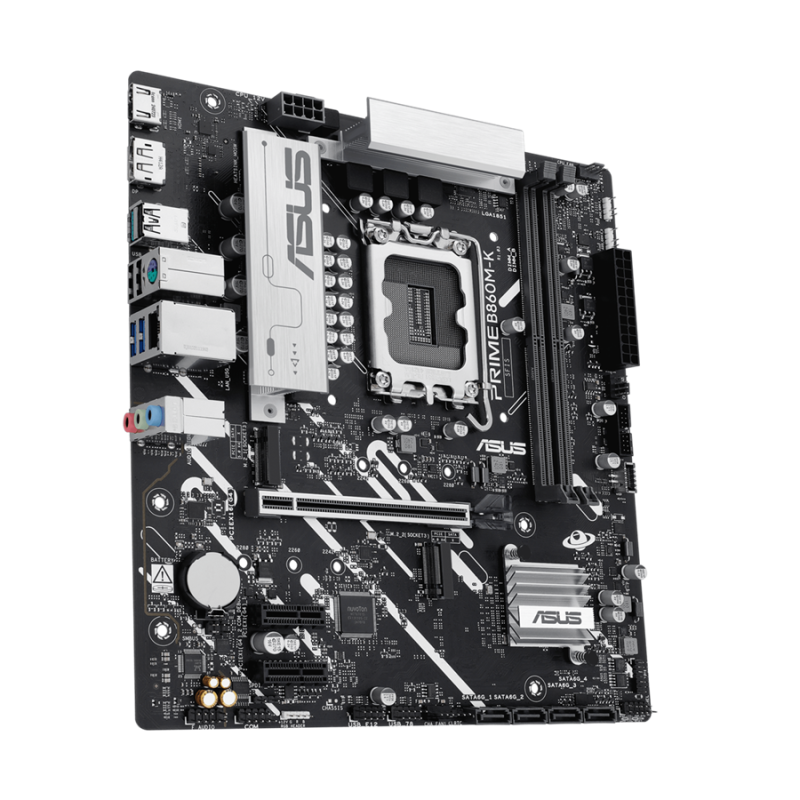

ASUS PRIME B860M-K
Марка:
ASUS
-
Graphics:1 x DisplayPort;1 x HDMI™ port
-
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB l...
-
Expansion Slots:Intel® Core™ Ultra Processors (Series 2);1 x PCIe 4.0 x16 slot;Intel® B860 Chipset;2 x PCIe 4.0 x1 slots
-

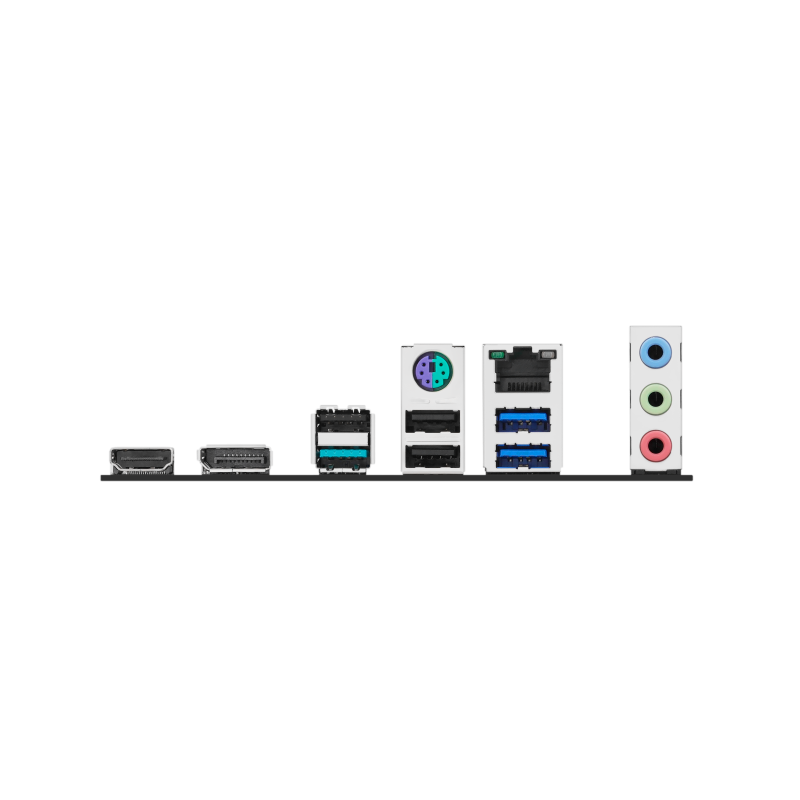

I/O:1 x USB 10Gbps port (1 x Type-A);2 x USB 5Gbps ports (2 x Type-A);3 x USB 2.0 ports (3 x Type-A);1 x DisplayPort;1 x HDMITM port;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard/Mouse combo port
-
CPU's supported:Supports Intel® Core™ Ultra Processors (Series 2), LGA1851;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
-
Storage:Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*;Intel® Core™ Ultra Processors (Series 2) * M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode);Intel® B860 Chipset;M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode...
-
Connectors:Fan and Cooling Related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;1 x 8-pin +12V CPU Power connectorStorage Related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 5Gbps connector (suppo...
-
BIOS:256(128+128) Mb Flash ROM, UEFI AMI BIOS
