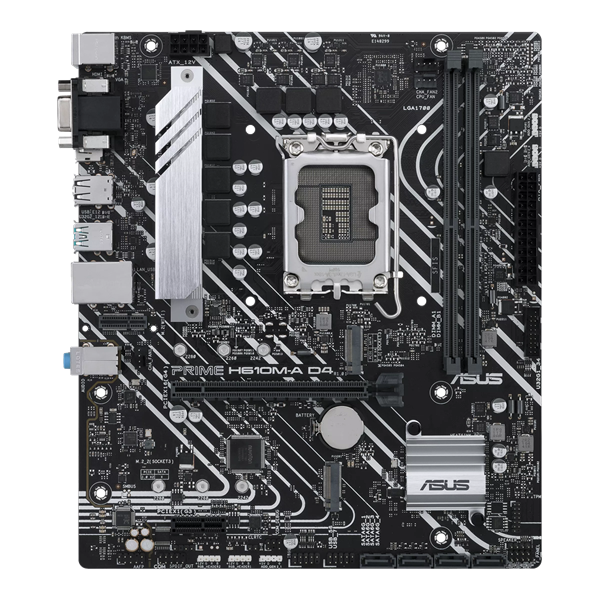

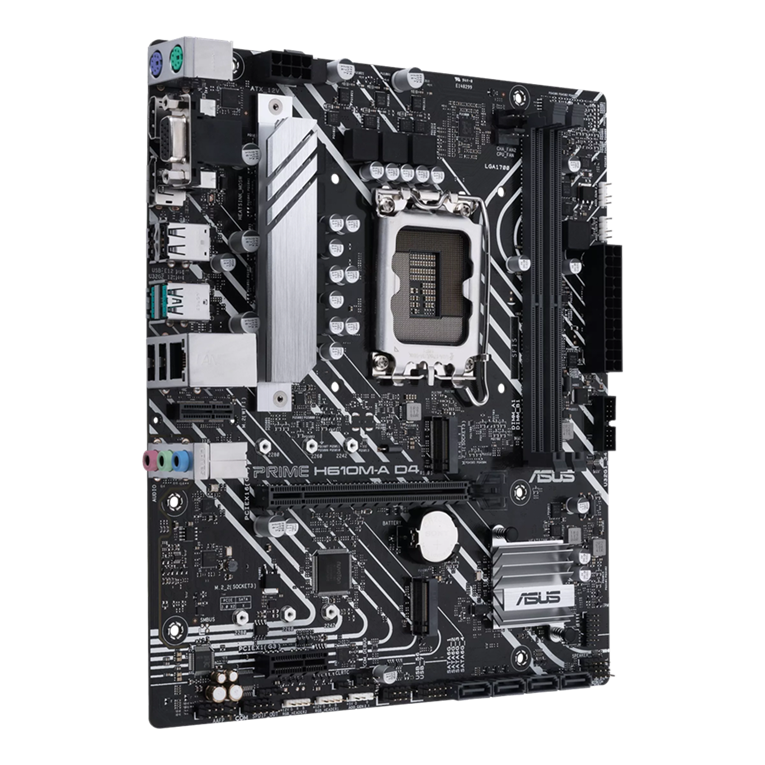

ASUS PRIME H610M-A D4-CSM
Марка:
ASUS
-
Wireless:V-M.2 slot only (Key E, CNVi & PCIe)
-
Graphics:1 x DisplayPort;1 x D-Sub port;1 x HDMI® port
-
Audio:Realtek 7.1 Surround Sound High Definition Audio CODEC*;- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;- Supports up to 24-Bit/192 kHz playback;Audio Features;- Audio Shielding;- Premium audio capacitors;- Dedicated audio PCB l...
-
Expansion Slots:Intel® Core™ Processors (14th & 13th & 12th Gen);1 x PCIe 4.0 x16 slot;Intel® H610 Chipset;1 x PCIe 3.0 x1 slot
-

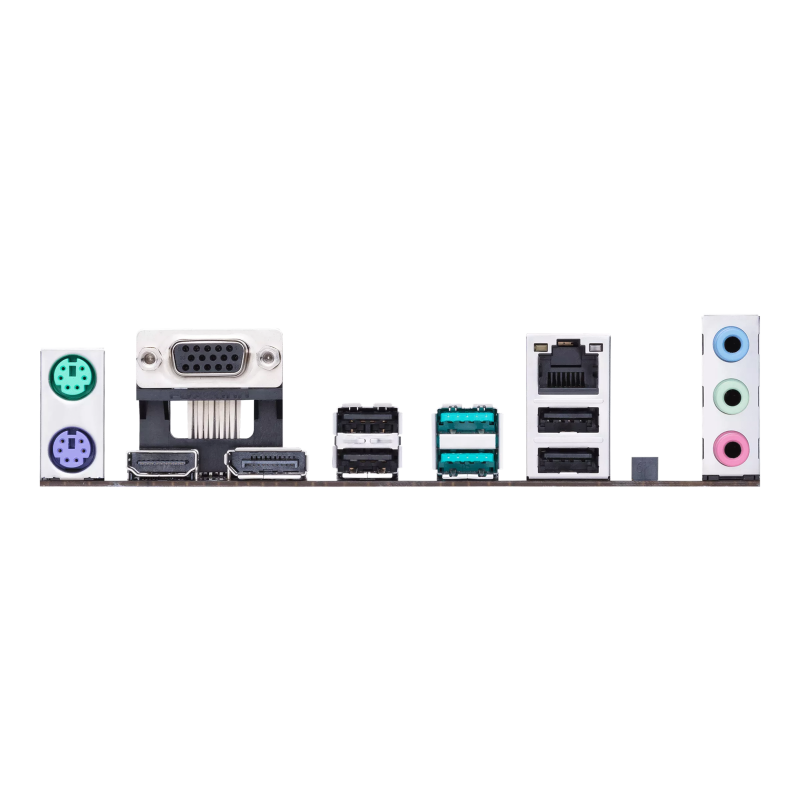

I/O:2 x USB 3.2 Gen 2 ports (2 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x DisplayPort;1 x HDMI® port;1 x D-Sub port;1 x V-M.2 slot (Key E);1 x Intel® 1Gb Ethernet port;3 x Audio jacks;1 x PS/2 Keyboard (purple) port;1 x PS/2 Mouse (green) port
-
CPU's supported:Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors;Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
-
Storage:Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports;Intel® H610 Chipset;M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode);4 x SATA 6Gb/s ports
-
Connectors:Fan and Cooling related;1 x 4-pin CPU Fan header;2 x 4-pin Chassis Fan headers;Power related;1 x 24-pin Main Power connector;1 x 8-pin +12V Power connector;Storage related;2 x M.2 slots (Key M);4 x SATA 6Gb/s ports;USB;1 x USB 3.2 Gen 1 header supports...
-
BIOS:128 Mb Flash ROM, UEFI AMI BIOS
