ASUS TUF GAMIN X870E-PLUS WIF7
Марка:
ASUS
-
Wireless:Wi-Fi 7;2x2 Wi-Fi 7 (802.11be);Supports 2.4/5/6GHz frequency band;Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate;Bluetooth® v5.4
-
Graphics:1 x HDMI™ port**;2 x USB4® (40Gbps) ports support USB Type-C® display outputs***;* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.;** Supports 4K@60Hz as specified in HDMI 2.1. ;*** Supports max. 4K@60Hz as...
-
Audio:Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC;- Impedance sense for front and rear headphone outputs;- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers;- Supports: Jack-detection, Multi-streamin...
-
Expansion Slots:AMD Ryzen™ 9000 & 7000 Series Desktop Processors;1 x PCIe 5.0 x16 slot;AMD Ryzen™ 8000 Series Desktop Processors;1 x PCIe 4.0 x16 slot (supports x8/x4 mode);AMD X870E Chipset;1 x PCIe 4.0 x16 slot (supports x4 mode);1 x PCIe 3.0 x1 Slot
-

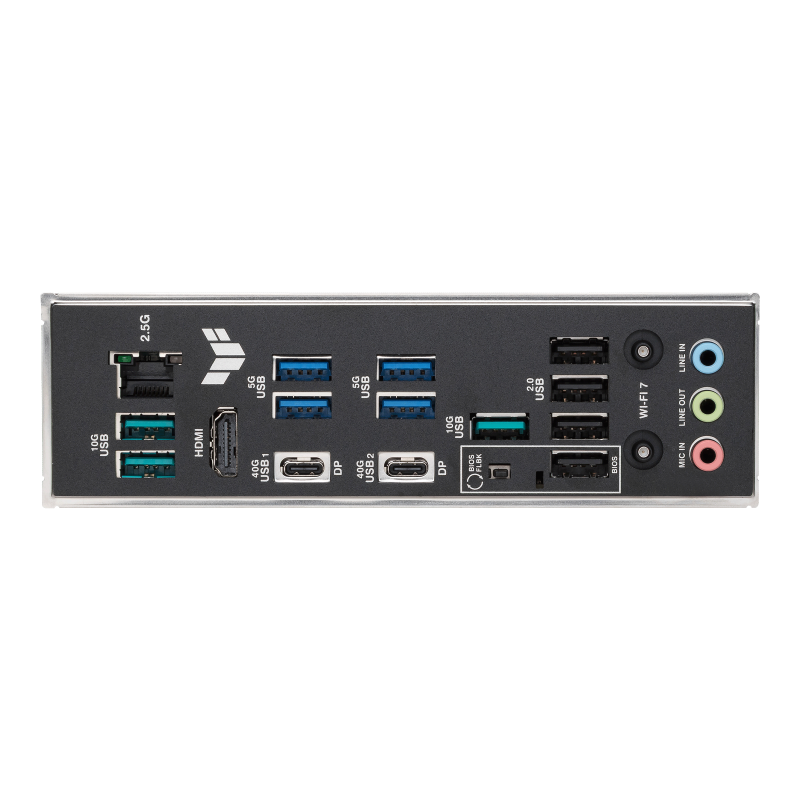

I/O:2 x USB4® (40Gbps) ports (2 x USB Type-C®);3 x USB 10Gbps ports (3 x Type-A);4 x USB 5Gbps ports (4 x Type-A);4 x USB 2.0 ports (4 x Type-A);1 x HDMI™ port;1 x Wi-Fi module;1 x Realtek 2.5Gb Ethernet port;3 x Audio jacks;1 x BIOS FlashBack™ button
-
CPU's supported:AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
-
Storage:Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports;AMD Ryzen™ 9000 & 7000 Series Desktop Processors;M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode);M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode);AMD Ryzen™ 8000 S...
-
Connectors:Fan and Cooling Related;1 x 4-pin CPU Fan header;1 x 4-pin CPU OPT Fan header;1 x 4-pin AIO Pump header;4 x 4-pin Chassis Fan headers;Power Related;1 x 24-pin Main Power connector;2 x 8-pin +12V CPU Power connectors;Storage Related;4 x M.2 slots (Key M...
-
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
