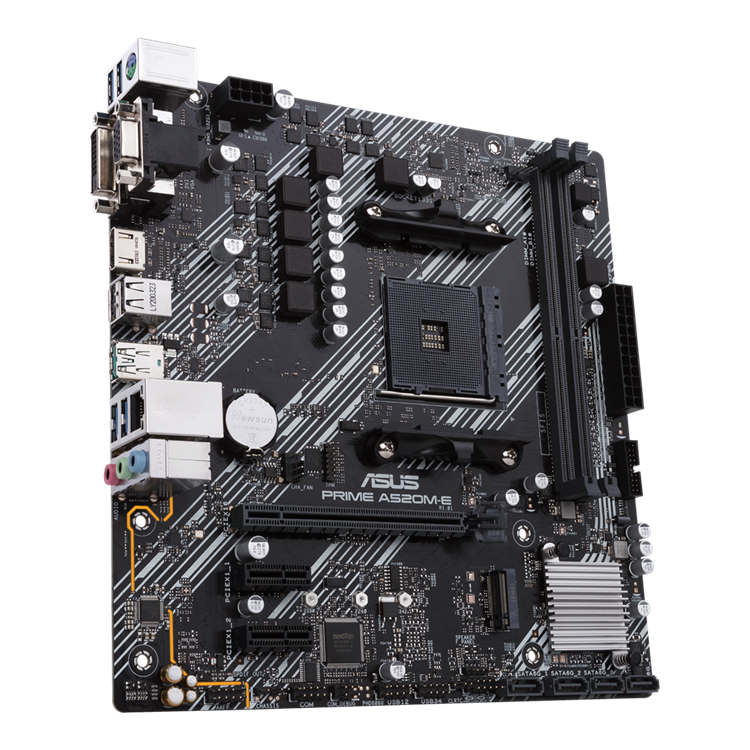

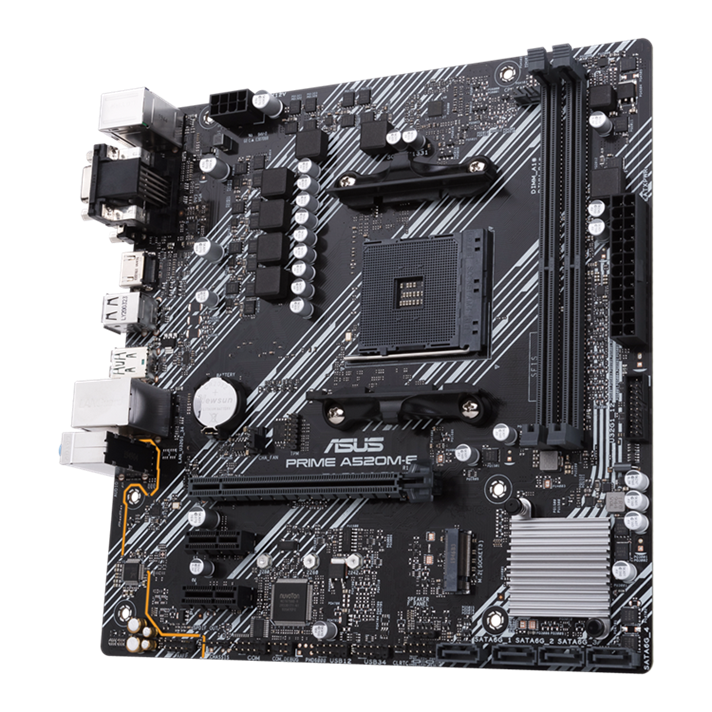

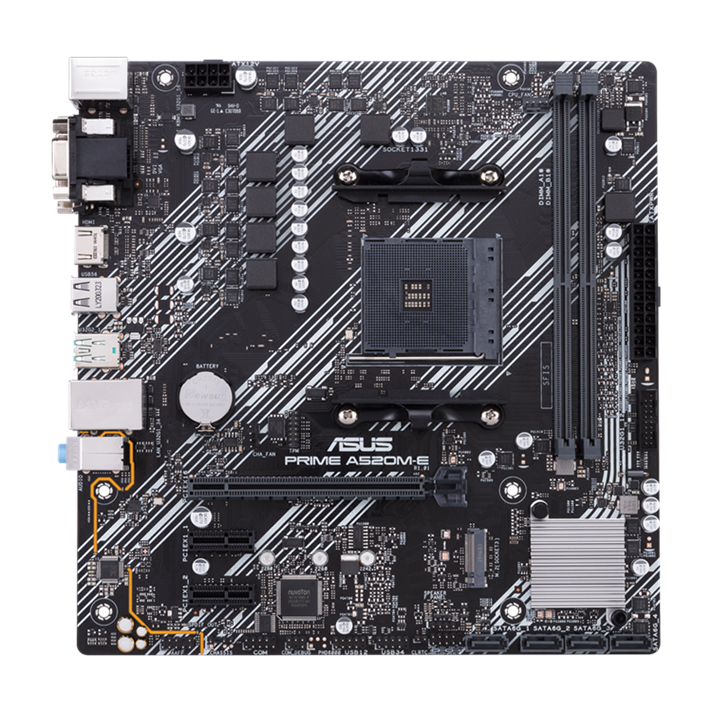

ASUS PRIME A520M-E / AM4
Марка:
ASUS
-
Manufacturer:ASUS
-
Audio:Premium audio capacitors, Realtek ALC887/8977;-Surround Sound High Definition Audio CODEC *;Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback;LED-illuminated design;Audio Shielding;Dedicated audio PCB l...
-
Memory Type:2 x DIMM, Max. 64GB, DDR4;4866(O.C)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4333(O.C.)/ 4266(O.C.)/ 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Un-b...
-
Graphics:1 x HDMI 2.1(4K@60HZ)
-
LAN:Realtek RTL8111H 1Gb Ethernet,ASUS LANGuard
-
Expansion Slots:AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors,AMD A520 Chipset,2 x PCIe 3.0 x1,1 x PCIe 3.0 x16 (x16 mode)
-

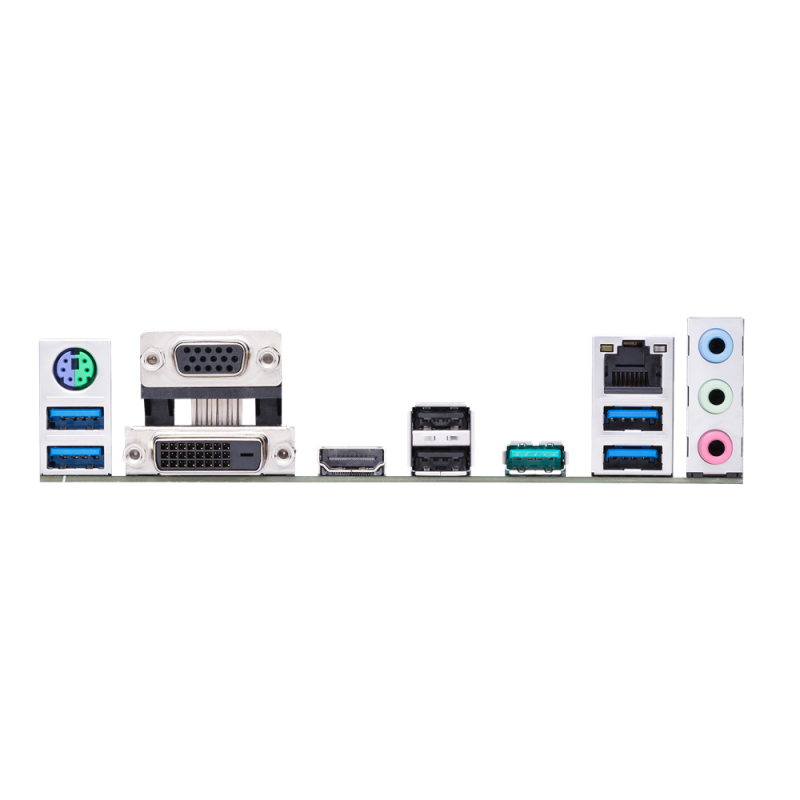

I/O:Back;1 x USB 3.2 Gen 2 (teal blue) (1 x Type-A);4 x USB 3.2 Gen 1 (blue) Type-A;1 x PS/2 keyboard/mouse combo port(s);1 x DVI-D;1 x D-Sub;1 x HDMI;1 x LAN (RJ45) port(s);2 x USB 2.0;3 x Audio jack(s)
-
Form Factor:mATX Form Factor, 22.6 cm x 22.1 cm
-
CPU's supported:AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors
-
Chipset:AMD A520
-
Storage:AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors : ,Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports,AMD A520 Chipset : ,1 x M.2 Socket 3, with M Key, Type 2242/ 2260/ 2280 (PCIE 3.0 x4 and SATA...
-
Connectors:1 x COM port header;1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s);1 x CPU Fan connector(s);1 x Chassis Fan connector(s);2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s);1 x M.2 Socket 3 with M...
-
BIOS:256 Mb Flash ROM, UEFI AMI BIOS
-
Features:ASUS Exclusive Software;Armoury Crate;AI Suite 3;- Performance and Power Saving Utility;TurboV EVO;EPU;Digi+ VRM;Fan Xpert;- EZ update;ASUS CPU-Z;AI Charger;DAEMON Tools;Norton Anti-virus software (Free Trial for 60 days);WinRAR;UEFI BIOS;ASUS EZ DIY;-...
-
USB:1 x USB 3.2 Gen 2 port(s);4 x USB 2.0 port(s)(4 x Type-A);Rear USB Port ( Total 7 );Front USB Port ( Total 6 );4 x USB 3.2 Gen 1 port(s)(4 x Type-A);2 x USB 3.2 Gen 1 port(s)(2 x Type-A);2 x USB 2.0 port(s)(2 x Type-A)
