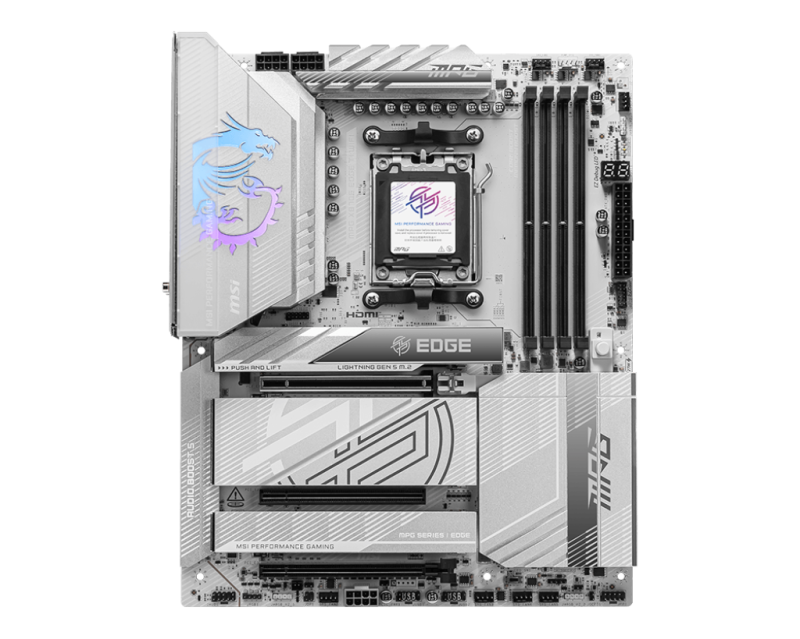

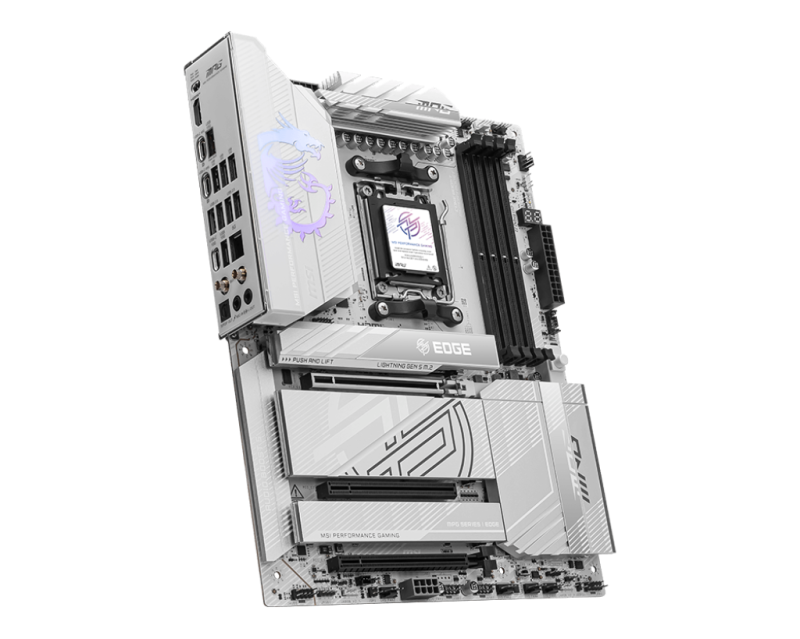

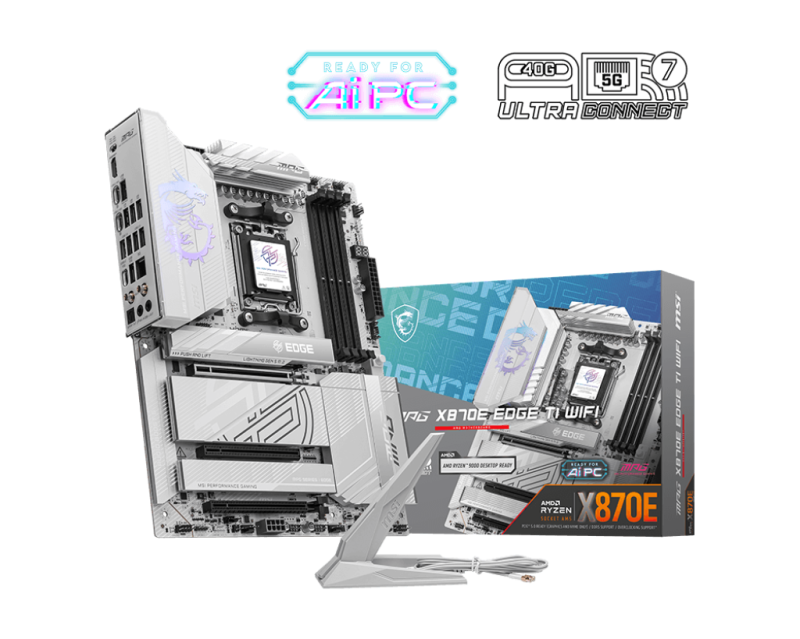

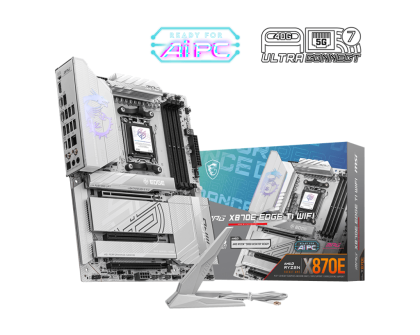

MSI MPG X870E EDGE TI WIFI
Марка:
MSI
-
Wireless:Wi-Fi 7;The Wireless module is pre-installed in the M.2 (Key-E) slot;Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps;Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
-
Graphics:1x HDMI™;Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*;2x Type-C DisplayPort;USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz
-
Audio:Realtek® ALC4080 Codec;7.1-Channel USB High-Performance Audio;Supports up to 32-Bit/384 kHz playback on front panel;Supports S/PDIF output
-
Expansion Slots:3x PCI-E x16 slot;PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU);PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset);PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset);PCI_E1 slot;• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors);...
-

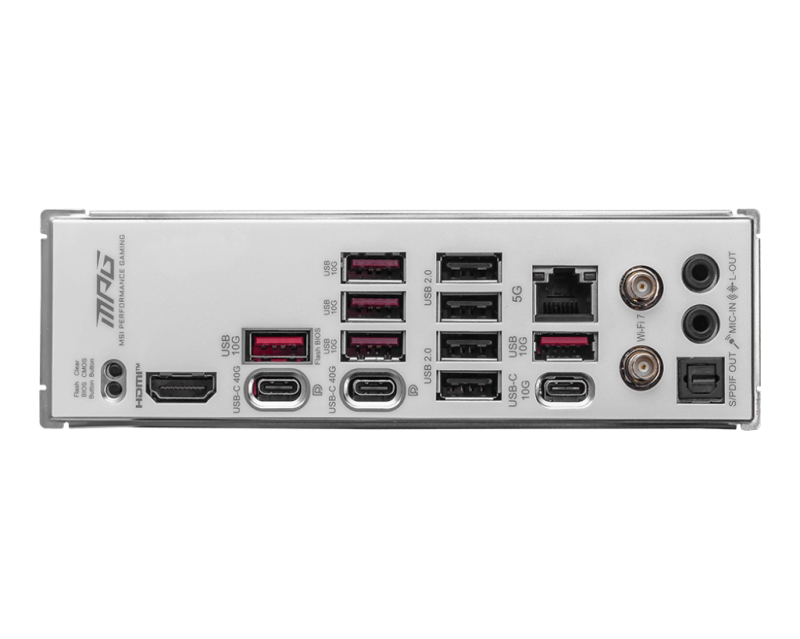

I/O:Clear CMOS Button;USB 10Gbps Type-A;USB 2.0;5G LAN;Wi-Fi / Bluetooth;Audio Connectors;Flash BIOS Button;HDMI™;USB 40Gbps Type-C;USB 10Gbps Type-A;USB 10Gbps Type-C;Optical S/PDIF Out
-
CPU's supported:Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors;Socket AM5
-
Storage:4x M.2;M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices;M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices;M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices;...
-
Connectors:1x Power Connector(ATX_PWR);2x Power Connector(CPU_PWR);1x Power Connector(PCIE_PWR 8pin);1x CPU Fan;1x Combo Fan (Pump_Sys Fan);6x System Fan;1x EZ Conn-header (JAF_2);2x Front Panel (JFP);1x Chassis Intrusion (JCI);1x Front Audio (JAUD);3x Addressabl...
