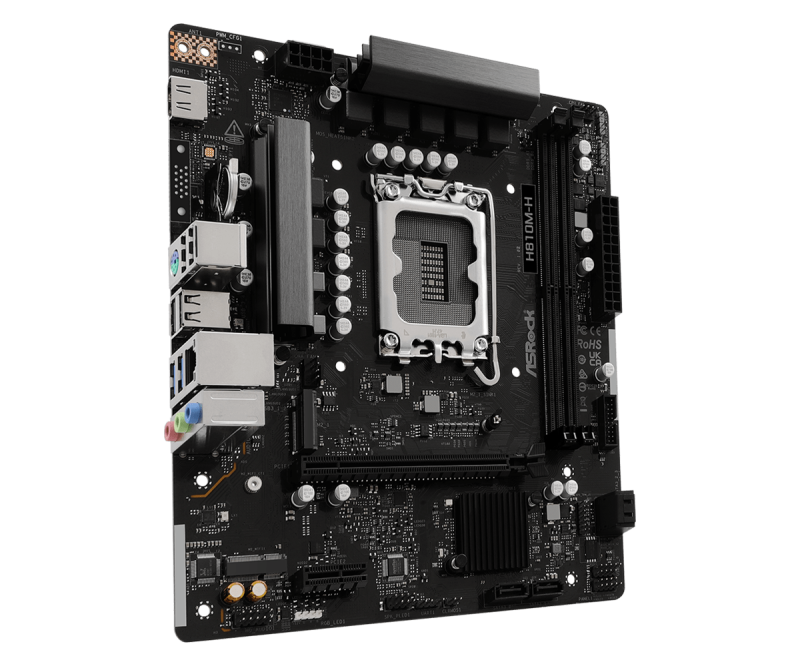

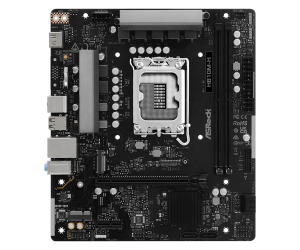

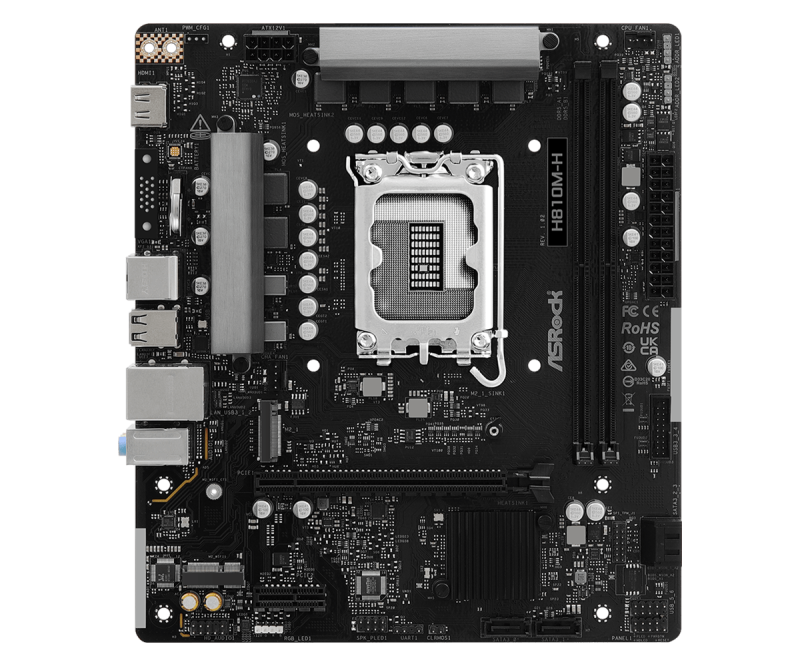

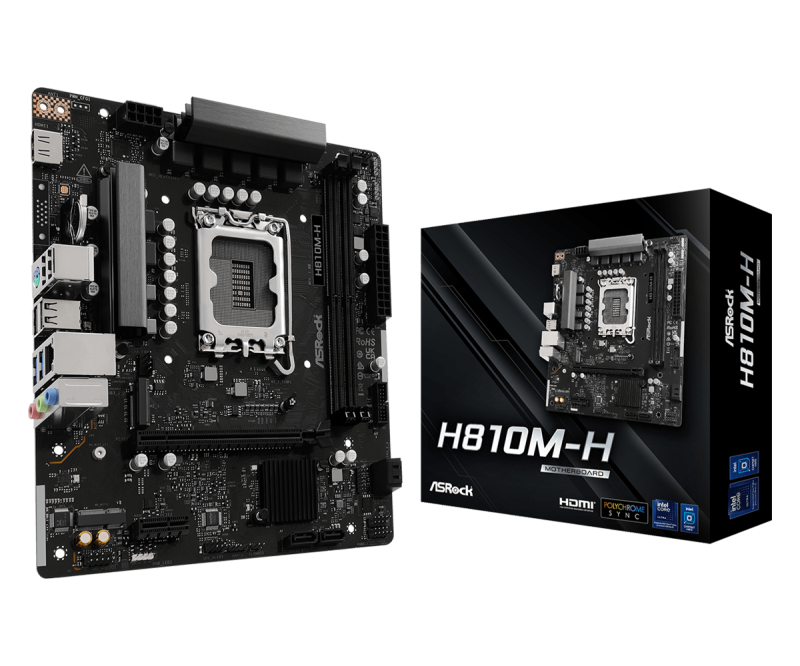

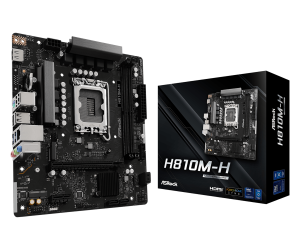

ASROCK H810M-H
Марка:
ASROCK
-
Manufacturer:ASRock
-
Other:Software;- ASRock Motherboard Utility (A-Tuning);- ASRock Polychrome SYNC;UEFI;- ASRock EZ Mode;- ASRock Full HD UEFI;- ASRock My Favorites in UEFI;- ASRock Auto Driver Installer;- ASRock Instant Flash
-
Audio:7.1 CH HD Audio (Realtek ALC897 Audio Codec)
-
Memory type:Dual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 6400;Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 128GB;Supports Intel® Extreme Memory Profile (XMP) 3.0x
-
Graphics:Intel® Xe LPG Graphics Architecture;1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
-
LAN:Gigabit LAN 10/100/1000 Mb/s;Realtek RTL8111H
-
Expansion Slots:CPU:;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 1 x PCIe 4.0 x1 Slot (PCIE2);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
-
I/O:2 x Antenna Mounting Points;1 x PS/2 Mouse/Keyboard Port;1 x HDMI Port;2 x USB 3.2 Gen1 Ports;4 x USB 2.0 Ports;1 x RJ-45 LAN Port;HD Audio Jacks: Line in / Front Speaker / Microphone
-
Form Factor:Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
-
CPU's supported:Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Velocity Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for...
-
Chipset:Intel® H810
-
Storage:Chipset:;- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors
-
Connectors:1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;2 x Addressable LED Headers;1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8...
-
BIOS:256Mb AMI UEFI Legal BIOS with GUI support
-
Features:Superb Productivity;- Dual Channel DDR5;Rock-Solid Durability;- 6+1+1+1+1 Power Phase;-ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology;EZ Update;- ASRock Auto Driver Installer
-
USB:Chipset:;- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front);- 6 x USB 2.0 (4 Rear, 2 Front)
