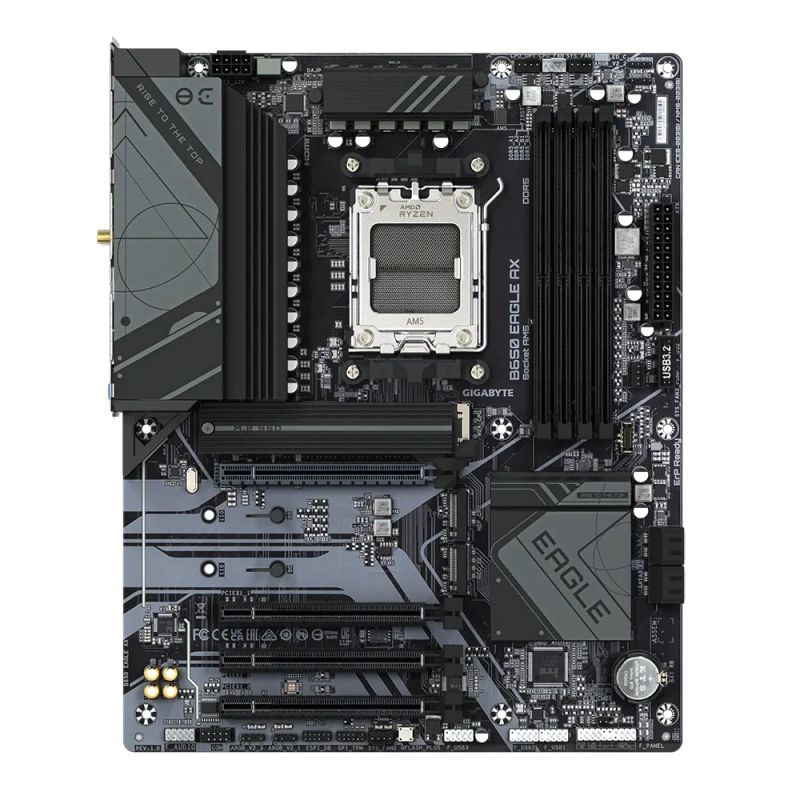

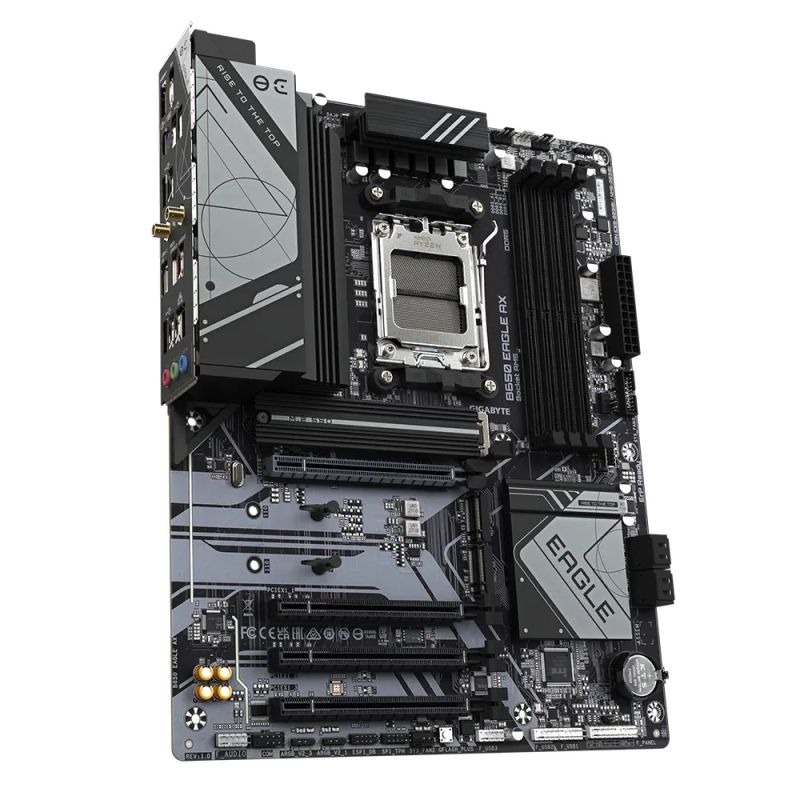

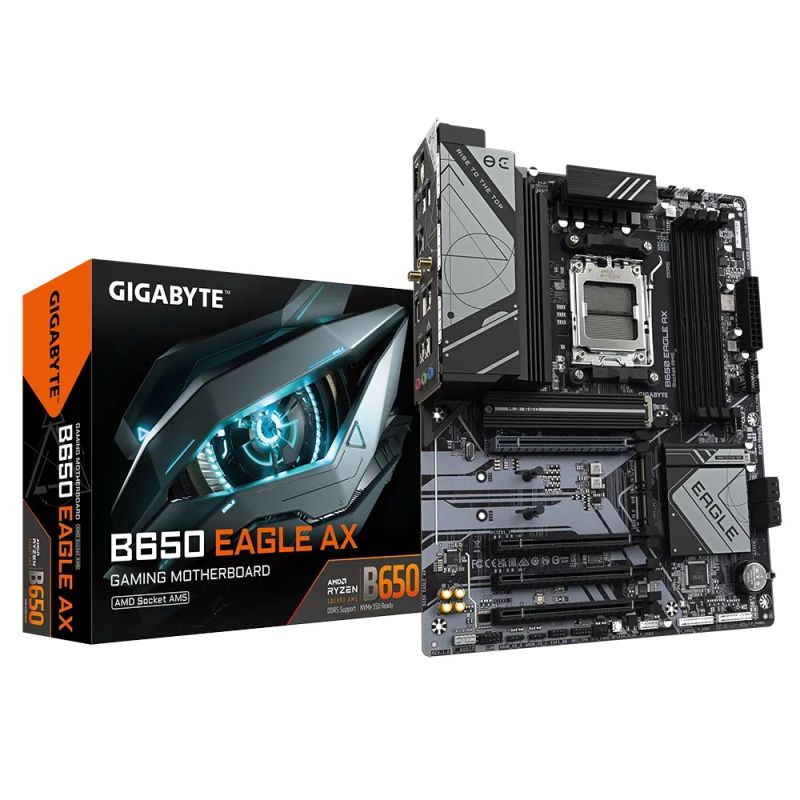

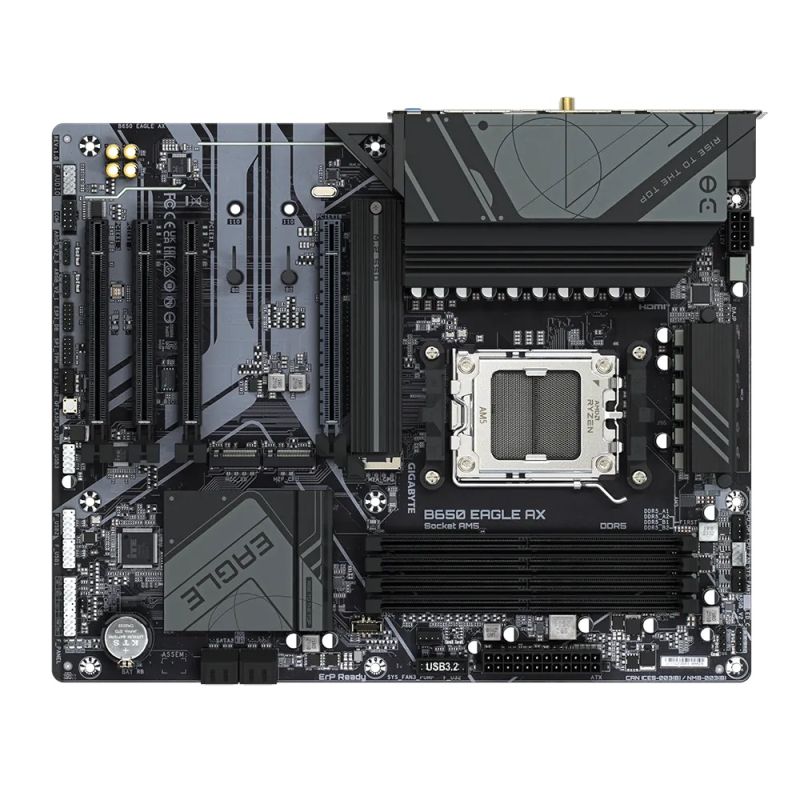

GB B650 EAGLE AX
Марка:
GIGABYTE
-
Graphics:Integrated Graphics Processor: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version.; - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
-
Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel; * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
-
Expansion Slots:1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode; - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe...
-
I/O:1 x DisplayPort; 1 x HDMI port; 1 x PS/2 keyboard/mouse port; 2 x SMA antenna connectors (2T2R); 1 x USB Type-C® port, with USB 3.2 Gen 1 support; 2 x USB 3.2 Gen 2 Type-A ports (red); 6 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
-
CPU's supported:AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors / AMD Ryzen™ 8000 Series Processors
-
Storage:1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs: - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs; - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs; - AMD Ryze...
-
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x CPU fan/water cooling pump header; 2 x system fan headers; 1 x system fan/water cooling pump header; 3 x addressable RGB Gen2 LED strip headers; 1 x RGB LED...
-
BIOS:1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
