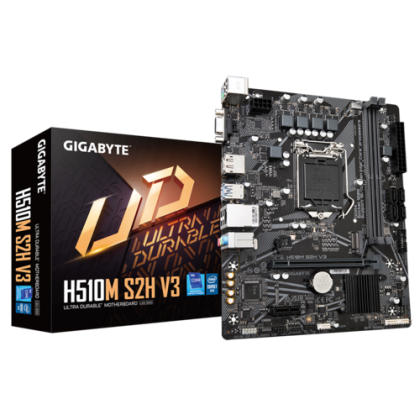

GB H510M S2H V3 /LGA1200
Марка:
GIGABYTE
- Гаранция:36 Months
- Memory type:11th Generation Intel® Core™ i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules; 10th Generation Intel® Core™ i5...
- Graphics:Integrated Graphics Processor-Intel® HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3.; 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz; * Sup...
- Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
- LAN:Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
- Expansion Slots:CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16; Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
- I/O:1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x DisplayPort; 1 x HDMI port; 2 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
- Form Factor:Micro ATX Form Factor; 22.6cm x 18.5cm
- CPU's supported:LGA1200 package: 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors; 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ In...
- Chipset:Intel® H470 Express Chipset
- Storage:Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support); 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices; * Supported with an additional PCIe to M.2 NVMe SSD adapter...
- Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x system fan header; 1 x RGB LED strip header; 1 x M.2 Socket 3 connector; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1...
- BIOS:1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
