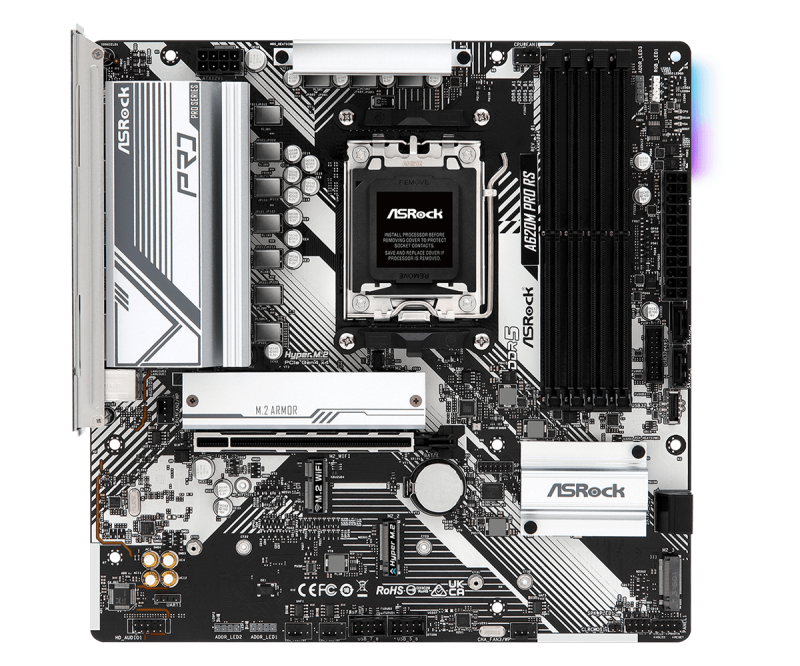

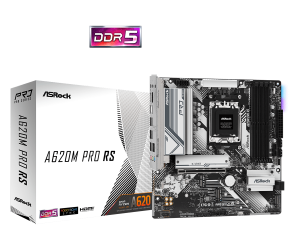

ASROCK A620M PRO RS
Марка:
ASROCK
- Гаранция:36 Months
- Memory type:- Dual Channel DDR5 Memory Technology; - 4 x DDR5 DIMM Slots; - Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*; - Max. capacity of system memory: 192GB; - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXP...
- Graphics:Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU): - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz; - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to...
- Audio:- 7.1 CH HD Audio (Realtek ALC897 Audio Codec); - Nahimic Audio
- LAN:- Gigabit LAN 10/100/1000 Mb/s; - Realtek 8111H
- Expansion Slots:CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode; * Chipset: - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module; * Supports NVMe SSD as boot disks; - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
- I/O:- 2 x Antenna Mounting Points; - 1 x HDMI Port; - 1 x DisplayPort 1.4; - 3 x USB 3.2 Gen1 Type-A Ports; - 1 x USB 3.2 Gen1 Type-C Port; - 4 x USB 2.0 Ports; - 1 x RJ-45 LAN Port; - 1 x BIOS Flashback Button; - HD Audio Jacks: Line in / Front Speaker /...
- Form Factor:- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
- CPU's supported:- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors*
- Chipset:- AMD A620
- Storage:CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*; - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode; * Chipset: - 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280...
- Connectors:- 1 x SPI TPM Header; - 1 x Power LED and Speaker Header; - 1 x RGB LED Header*; - 3 x Addressable LED Headers**; - 1 x CPU Fan Connector (4-pin)***; - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****; - 3 x Chassis/Water Pump Fan...
- BIOS:- 256Mb AMI UEFI Legal BIOS with GUI support
